Baking Oven (single door)
長191x寬161x高220cm
皆可客製化訂做尺寸
特點說明： 瓦斯型 電力型
●機器內外層採用2層厚不銹鋼板，中層裝設進口耐高溫岩棉，保溫性能佳，可節約能源。
●箱內明火加溫在鋼板聚熱處，能迅速加熱，效果良好，可使熱源不易流失，發揮到最佳效率。
●空氣與瓦斯比例控制精準，一般家用瓦斯桶即可使用，操作簡便。
●具可調整多段式火排、風扇，可使烘烤出來產品更能均勻。
●自動點火系統安全提升，點火未點燃、點火異常警報，警示點火動作立即停止。
●正門中間處設有耐高溫透明玻璃，在烘烤時能清楚看見內部運轉情形。
●外觀整體設計製造精緻美觀，機器運轉順暢，無雜音，可拆卸再組合，不受空間限制。
●控制箱可設定溫度自動控溫，第一段加熱恆溫時間及保溫降溫，第二段時間雙點火控制火侯穩定。
●低功率馬達內部熱循環迅速，警報蜂鳴器安全可靠。箱內照明清晰。
●可依客戶需求訂製尺寸或修改相關功能，產品多樣性。
Feature：
- ●The inner and outer layers of the machine are made of 2-layer thick stainless steel plates, and the middle layer is equipped with imported high-temperature-resistant rock wool, which has good thermal insulation performance and can save energy.
- ●The open fire in the box is heated at the heat-gathering part of the steel plate, which can be heated quickly and the effect is good, so that the heat source is not easy to be lost, and the best efficiency can be exerted.
- ●Precise control of the ratio of air and gas, the general household gas barrel can be used, easy to operate.
- ●With adjustable multi-stage fire row and fan, it can make the baked products more evenly.
- ●The safety of the automatic ignition system is improved, the ignition is not ignited, the ignition is abnormal, and the warning is given to stop the ignition immediately.
- ●The middle of the front door is equipped with high-temperature-resistant transparent glass, so that the internal operation can be clearly seen during baking.
- ●The overall design and manufacture of the appearance is exquisite and beautiful, the machine runs smoothly without noise, can be disassembled and reassembled, and is not limited by space.
- ●The control box can set the temperature to automatically control the temperature, the first stage of heating constant temperature time and heat preservation and cooling, and the second stage of dual ignition control to stabilize the fire.
- ●Low-power motor internal thermal cycle is rapid, and the alarm buzzer is safe and reliable. The lighting inside the box is clear.
- ●The size can be customized or the relevant functions can be modified according to the needs of customers, so the product is diverse.
Baking Oven (doudle door)
長250x寬175x高197cm
皆可客製化訂做尺寸
特點說明：
●機器內外層採用2層厚不銹鋼板，中層裝設進口耐高溫岩棉，保溫性能佳，可節約能源。
●箱內明火加溫在鋼板聚熱處，能迅速加熱，效果良好，可使熱源不易流失，發揮到最佳效率。
●空氣與瓦斯比例控制精準，一般家用瓦斯桶即可使用，操作簡便。
●具可調整多段式火排、風扇，可使烘烤出來產品更能均勻。
●自動點火系統安全提升，點火未點燃、點火異常警報，警示點火動作立即停止。
●正門中間處設有耐高溫透明玻璃，在烘烤時能清楚看見內部運轉情形。
●外觀整體設計製造精緻美觀，機器運轉順暢，無雜音，可拆卸再組合，不受空間限制。
●控制箱可設定溫度自動控溫，第一段加熱恆溫時間及保溫降溫，第二段時間雙點火控制火侯穩定。
●低功率馬達內部熱循環迅速，警報蜂鳴器安全可靠。箱內照明清晰。
●可依客戶需求訂製尺寸或修改相關功能，產品多樣性。
Feature：
- ●The inner and outer layers of the machine are made of 2-layer thick stainless steel plates, and the middle layer is equipped with imported high-temperature-resistant rock wool, which has good thermal insulation performance and can save energy.
- ●The open fire in the box is heated at the heat-gathering part of the steel plate, which can be heated quickly and the effect is good, so that the heat source is not easy to be lost, and the best efficiency can be exerted.
- ●Precise control of the ratio of air and gas, the general household gas barrel can be used, easy to operate.
- ●With adjustable multi-stage fire row and fan, it can make the baked products more evenly.
- ●The safety of the automatic ignition system is improved, the ignition is not ignited, the ignition is abnormal, and the warning is given to stop the ignition immediately.
- ●The middle of the front door is equipped with high-temperature-resistant transparent glass, so that the internal operation can be clearly seen during baking.
- ●The overall design and manufacture of the appearance is exquisite and beautiful, the machine runs smoothly without noise, can be disassembled and reassembled, and is not limited by space.
- ●The control box can set the temperature to automatically control the temperature, the first stage of heating constant temperature time and heat preservation and cooling, and the second stage of dual ignition control to stabilize the fire.
- ●Low-power motor internal thermal cycle is rapid, and the alarm buzzer is safe and reliable. The lighting inside the box is clear.
- ●The size can be customized or the relevant functions can be modified according to the needs of customers, so the product is diverse.
Second - Hand Rotary Oven
Push - ln Steaming Cabinet
長101x寬81x高190cm
特性說明
●不鏽鋼結構，採用不鏽鋼四號砂製作面板使用。
●門板之內外層充填PU泡棉保溫，櫃體頂板設有透氣孔。
●開關箱內採用觸控控制面板，其功能包含溫度控制、時間控制、電壓表、蜂鳴器、自動水功能、乾燒斷電保護裝置。
●電能水箱爐是完全獨立空間，與蒸箱主體空間區隔，可確保蒸氣不會與食材味道、油脂混蒸。
●附有活動車輪，在庫外，形成蒸庫內與活動輪隔離，達成蒸箱內不受外部外在汙染。
●蒸盤車可搭配不同的網架、調理盆等。
FEATURES
●Stainless steel structure; panels made with No. 4 finish stainless steel.
●The inner and outer layers of the door panels are filled with PU foam for insulation. The top panel of the cabinet is equipped with ventilation holes.
●The control box uses a touch control panel, with functions including temperature control, time control, voltmeter, buzzer, automatic water filling, and dry-burn power-off protection.
●The electric water tank boiler is in a completely separate space, isolated from the main steaming chamber, ensuring that steam does not mix with food odors or grease.
●Equipped with movable casters located outside the steaming chamber, creating a separation between the interior and the wheels to prevent external contamination.
●The steamer cart can be used with different types of racks, prep pans, etc.

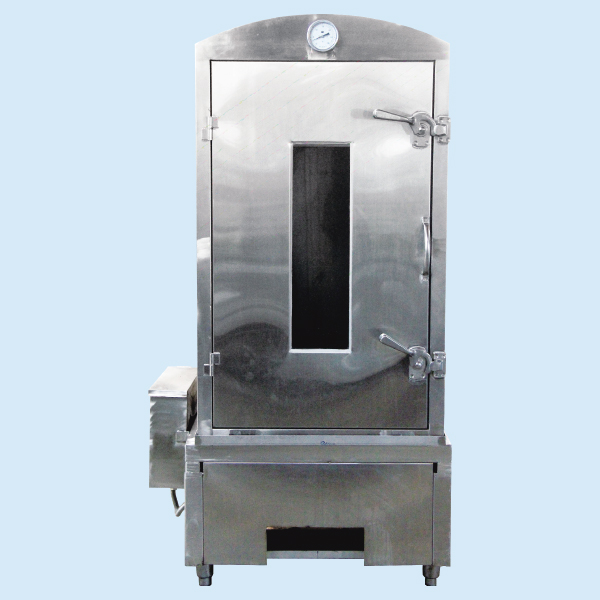

Hong Kong-Style Steamer
長95x寬97x高180cm
特性說明
●蒸箱分層獨立設計。
●每層皆有獨立蒸氣開關做單一層控制，在烹飪時，可以達到味道不相通。
●母火設計。
●主爐採用瓦斯及風力連動式控制開關。
FEATURES
●The steamer features an independent multi-layer design.
●Each layer has its own individual steam valve for single-layer control, allowing separation of flavors during cooking.
●Equipped with a master burner system.
●The main boiler uses a gas and air linkage control switch.
Electric Convection Oven, Vertical, 6 Trays
長76x寬112x高71cm
電壓 220V 9KW
外型美觀大方。
容量大、耗電量低。
體積小，可疊放。
適合蛋糕、餅乾、麵包等還可以用於烘烤各類菜色如烘焙焗飯、烤菜等。
電烤箱的上下部分都可以進行升溫和加熱，在烘烤時可以選擇只開上火或上下火力一起打開。
FEATURES
●Stylish and space-saving vertical design.
●Large capacity with low energy consumption.
●Stackable for efficient kitchen use.
●Ideal for cakes, cookies, bread, baked rice, and roasted dishes.
●Top and bottom heating with flexible heat control options.
Rotary Rack Oven
長266x寬160x高243cm
柴油、瓦斯、電氣65KW等燃料皆可選用
DIESEL,GAS OR ELECTRIC POWERED AVAILABLE
快速風可烤吐司等，慢速風可烤麵包皮、控制箱採用180度旋轉、不銹鋼內壁
特點說明：
●採用日本原裝進口柴油燃燒機，高效率，可節省燃料。
●日本原裝進口耐高溫岩棉，保證耐溫高達600C
●不銹鋼內壁，耐高溫雙層玻璃隔熱門，性能好、視線佳，使您在烘焙時能清晰看到內部運轉情形。
●可拆卸再組合，不受空間影響。
●控制箱採用180度旋轉式，可任意調整所需角度。
●外觀整體設計，精美大方，機器運轉靜無雜音，烘焙空間利用率高，節省人力，確保產品最高品質。
●二段式風車，快速風可烤土司等，慢速風可烤油皮等，本機對西餅小點心、油皮起酥、吐司麵包、漢堡、禮餅油皮酥、法國麵包、餅乾類、西餅禮
餅等具有優越之全功能。
●台灣、歐洲尺寸烤盤皆可適用(32盤)。
●安全警笛及防爆系統，全自動控制。
Feature：
●High-efficiency and energy-saving diesel burner imported form Japan.
●High temperature resisting glass-wool imported from Japan,can resist temperatures up to 600C
●Stainless steel chamber wall,see-through double glazed high temperature resistant glass door gives clear view of baking operations.
●Can be taken apart and reassembled,saving space.
●The control box features a 180-degree rotating design, allowing adjustment to any desired angle.
●A sleek, elegant, design-noiseless running-maximum production in minimum space. The unit reduces labor requirements and ensures top quality products.
●Fitted with all kinds of European and Taiwanese baking trays.
●Fully automatic safety alarm and anti-burst system.
Rotary Rack Oven
長266x寬160x高243cm
柴油、瓦斯、電氣65KW等燃料皆可選用
DIESEL,GAS OR ELECTRIC POWERED AVAILABLE
快速風可烤吐司等，慢速風可烤麵包皮、控制箱採用180度旋轉、不銹鋼內壁
特點說明：
●採用日本原裝進口柴油燃燒機，高效率，可節省燃料。
●日本原裝進口耐高溫岩棉，保證耐溫高達600C
●不銹鋼內壁，耐高溫雙層玻璃隔熱門，性能好、視線佳，使您在烘焙時能清晰看到內部運轉情形。
●可拆卸再組合，不受空間影響。
●控制箱採用180度旋轉式，可任意調整所需角度。
●外觀整體設計，精美大方，機器運轉靜無雜音，烘焙空間利用率高，節省人力，確保產品最高品質。
●二段式風車，快速風可烤土司等，慢速風可烤油皮等，本機對西餅小點心、油皮起酥、吐司麵包、漢堡、禮餅油皮酥、法國麵包、餅乾類、西餅禮
餅等具有優越之全功能。
●台灣、歐洲尺寸烤盤皆可適用(32盤)。
●安全警笛及防爆系統，全自動控制。
Feature：
●High-efficiency and energy-saving diesel burner imported form Japan.
●High temperature resisting glass-wool imported from Japan,can resist temperatures up to 600C
●Stainless steel chamber wall,see-through double glazed high temperature resistant glass door gives clear view of baking operations.
●Can be taken apart and reassembled,saving space.
●The control box features a 180-degree rotating design, allowing adjustment to any desired angle.
●A sleek, elegant, design-noiseless running-maximum production in minimum space. The unit reduces labor requirements and ensures top quality products.
●Fitted with all kinds of European and Taiwanese baking trays.
●Fully automatic safety alarm and anti-burst system.
Rotary Rack Oven, 32 Trays (Cart Elevation Model)
長200x寬210x高250cm
特點說明：
●省油效率高，以前國內各家族轉爐比較，此型轉爐每小時烘烤耗油最低，由於此燃燒結構更優於其他爐。 燃燒室排煙設計由上往下，再由煙管排出，等於熱能回收再利用，熱能損耗最低；保溫效果佳，隔層斷熱設計；完全燃燒，燃燒機為噴霧燃燒，使柴油完全燃燒。
●烘烤色澤均勻此爐爐內熱氣循環，烘烤室內熱力均勻。 操作方便，衛生好清理，此機為懸吊式旋轉烘烤，爐門打開懸吊下降，爐門關閉懸吊架自動上升，以機械拉桿操製，固故障率低。
●更安全，排煙管道加長，排氣拉力大完成全燃燒，耗油量更省，排氣順暢。
●此機種具有獨特熱氣循環，可烤滿漢、甜麵包，烤出有層次的麵包。
●二段式風車，可快風、慢風，可依不同產品而選擇風速。
●烤盤尺寸:46x72cm(可配合32盤/36盤)。
Feature：
●High-efficiency and energy-saving diesel burner imported form Japan.
●Efficient & Economical
This Hong Kong-style rotary oven features the lowest fuel consumption among domestic models, thanks to its advanced combustion system and heat-recycling exhaust design.
Even Heat, Perfect Bake
The hot air circulation ensures consistent temperature and uniform baking results, ideal for buns, sweet breads, and layered pastries.
●User-Friendly Design
Suspended rotary system with automatic lift/lower mechanism for easy operation and cleaning. Low maintenance with a reliable mechanical setup.
●Safe & Powerful
Extended exhaust pipe improves airflow and combustion efficiency, making it safer and more fuel-efficient.
●Customizable Airflow
Two-speed fan (fast/slow) to suit different baking needs.
●Tray Size
Fits 32 or 36 trays (46 x 72 cm each).
Specialized basket oven. DIESEL TYPE . ELECTRIC TYPE
●一機多用途，比層次爐更有層次的超級烤爐，可烘焙不同食品如月餅、蛋糕、多層次麵包與綠豆椪。
●產品容量大、規格種類多24盤、36盤、等多種選擇，烤盤尺寸46x72x2.5cm，節省燃料費三分之二。
●Multiple uses in one machine. Saves more space than a deck oven. It can bake different food items, such as moon cakes, cakes, breads and pastries.
●Different sizes and specifications are available. Provides multi-type selection of pan sizes (24, 36). Dimensions of baking pan: 46 x 72 x 2.5cm. 2/3 fuel cost saving.
Hong Kong-Style Blower Stove
長180x寬90x高120cm
爐體與檯面一體成形，只要開一個開關間即可調整大小火、後腳內設計檯面給水進水孔
特點說明：
●爐框與爐面一體成形沖壓而成。台面前線弧形倒 角,可固定鍋具於檯面上,讓使用者更為便利。
●耐火磚CBW-SK36製作,並以可塑性耐火泥抹實。
●瓦斯及給水開關採用爐灶特殊設計搖動式開關。 鼓風連動式開關只需要一個開關即可調整大小 火,瓦斯及給水開關採用爐灶特殊設計搖動式開關。
●鼓風機使用1-220V-1/2HP,可由前面維修門取 出,安全方便,設計隱藏在爐台內,可經由特殊 設計的門板開啟。
●後牆內設計檯面給水進水孔採用直瀑式設計並隱 藏於不銹鋼後牆內,可用於降低檯面溫度及清潔 檯面的功用,直瀑式設計可以避免進水孔堵塞, 檯面些微傾角的設計與前緣排水溝讓清潔更容易。
●母火點火系統採用電點,主火火力開關採用風 量及瓦斯連動同步設計,操作簡單 。 瓦斯連動 開關,每一組爐心可產生45000Kcal/52.7KW 的火力。鼓風爐母火採側噴式設計。鼓風爐母火 探側噴式設計。
Feature：
●The oven frame and surface are formed as a single stamped unit. The countertop front edge has a curved chamfer to secure cookware, enhancing usability.
●Refractory bricks (CBW-SK36) are applied with plastic refractory mortar for durability and heat resistance.
●Gas and water valves use a specialized rocker switch designed for stoves. The blower-linked switch allows flame adjustment with one control valve.
●The blower motor (1/2 HP, 1-220V) is accessible through a front service door, safely enclosed within the stove.
●A waterfall-style water inlet hidden in the stainless steel rear wall lowers countertop temperature and aids cleaning. The countertop has a slight slope and drainage groove for easy maintenance.
●The electric pilot ignition system and synchronized air-gas flame control enable simple, precise operation. Each burner produces 45,000 Kcal (52.7 KW). The pilot flame uses a side-jet design for stable ignition.
▲台車可宅配到府、搭配各式烤盤
金興餐飲廚房設備工廠經營餐飲機械設備製造已有十餘年，是一個專業的研發、設計餐飲機械設備用品團隊，涵蓋的餐飲設備種類齊全，秉持著「專業製造、用心服務」的精神，提供優良產品完善的售後服務。
金興餐飲廚房設備(Jin Xing Catering Equipment)擁有專業維修技師，隨時竭誠為您服務。
Professional manufacturing, sincere service
Providing excellent products and comprehensive after-sales service
Jin Xing Catering Equipment’s expertise is in developing and designing a comprehensive range of catering equipment. With over 10 years of experience in manufacturing catering equipment, Jin Xing Catering Equipment provides excellent products and comprehensive after-sales service in the spirit of “professional manufacturing and sincere service”.
Jin Xing Catering Equipment’s professional repair and maintenance engineers are always at your service.
